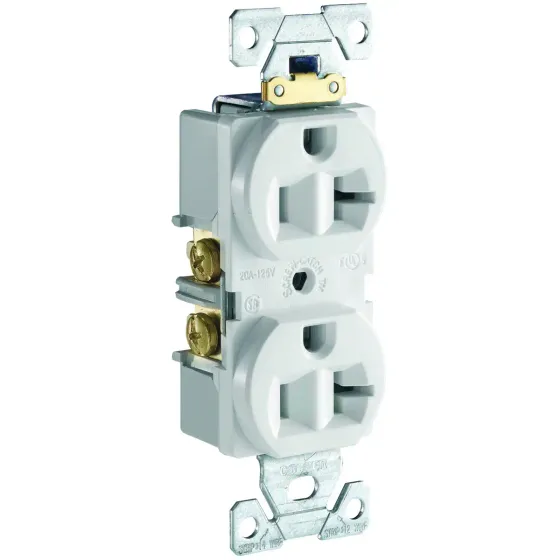

Eaton Wiring Devices CR20W White Grounded Duplex Receptacle 20 Amp

• Sturdy, compact design meets the demands of commercial spec grade performance
• Excellent plug blade retention provided by 0.032 in (0.81mm) triple-wipe brass line contacts and 0.050 in (1.27mm) brass ground
• High impact-and chemical-resistant nylon face
• 0.035 in galvanized steel, wraparound yoke mounting strap for great assembly security, extra length/width helps reach large panel cutouts for code compliance
• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
• Screw-Catch feature on duplex devices speeds mounting of wallplates

Duplex receptacles 2 pole/3 wire - grounding heavy duty - side wire color=white amps/ volts=20/125 Triple wipe line contacts provide long-term plug retention. Double wipe ground contacts. 0.050 inches thick steel wrap-around mounting strap zinc-plated for corrosion resistance. Split circuit break-off tab. Automatic grounding system eliminates need for bondin g jumper in grounded metal enclosure. Side wire terminals accept up to #10 solid or stranded wire. Meets all UL 498 requirements UL Listed.

Commercial specification-grade straight blade receptacles - 20 A, 125 V, NEMA 5-20R. Engineered for safe, reliable performance, these UL 498 and Federal Specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time. Triple wipe line contacts provide long-term plug retention. Double wipe ground contacts. 0.050 inches thick steel wrap-around mounting strap zinc-plated for corrosion resistance. Split circuit break-off tab. Automatic grounding system eliminates need for bondin g jumper in grounded metal enclosure. Side wire terminals accept up to #10 solid or stranded wire. Meets all UL 498 requirements UL Listed.
