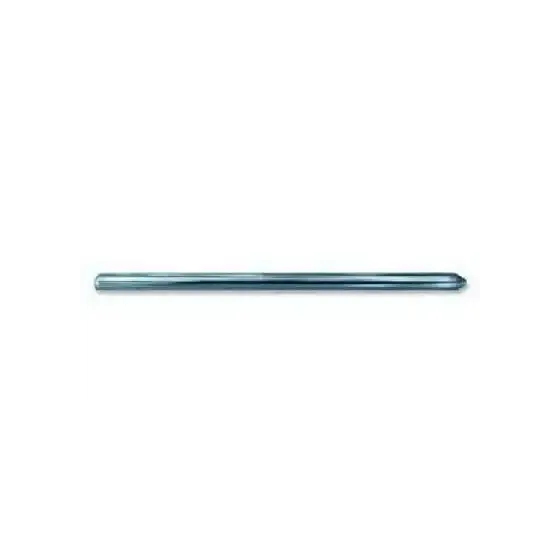

GROUND ROD 6 FT. 1/2 INCH GALVANIZED ERICO 811280UPC

GROUND ROD 6 FT. 1/2 INCH GALVANIZED ERICO 811280UPC

High strength, corrosion resistant ground rods. All products are manufactured to ISO standards. In a grounding system, the ground electrode provides the physical connection to the earth and is the instrument used to dissipate current into it. The ground rod is the most widely used grounding electrode. Galvanized ground rod version: Meet EEI-NEMA TDJ-30 and are REA listed. Zinc-coated exteriors are hot-dip galvanized for solid protection against corrosion in accordance with ASTM specification A153-78. Surfaces are rigidly inspected to eliminate seams, slivers and other defects. 15 year service life in most soils. Copper bonded ground rod version: Copper is molecularly bonded to nickel-sealed high-strength steel cores. Cold-rolled threads with continuous, unbroken grain flows are stronger than cut threads. UL467. Average tensile strength of 80,000 psi and straightness tolerance of .010" per linear foot . Exceed the requirements of ANSI/UL 467-1984, CSA, and ANSI/NEMA GR-1. Manufactured of high-strength 1035 cold-drawn steel. Resist corrosion better than galvanized rods, allowing for a 30-year service life in most soils. State-of-the-art manufacturing process ensures uniform plating thickness.
